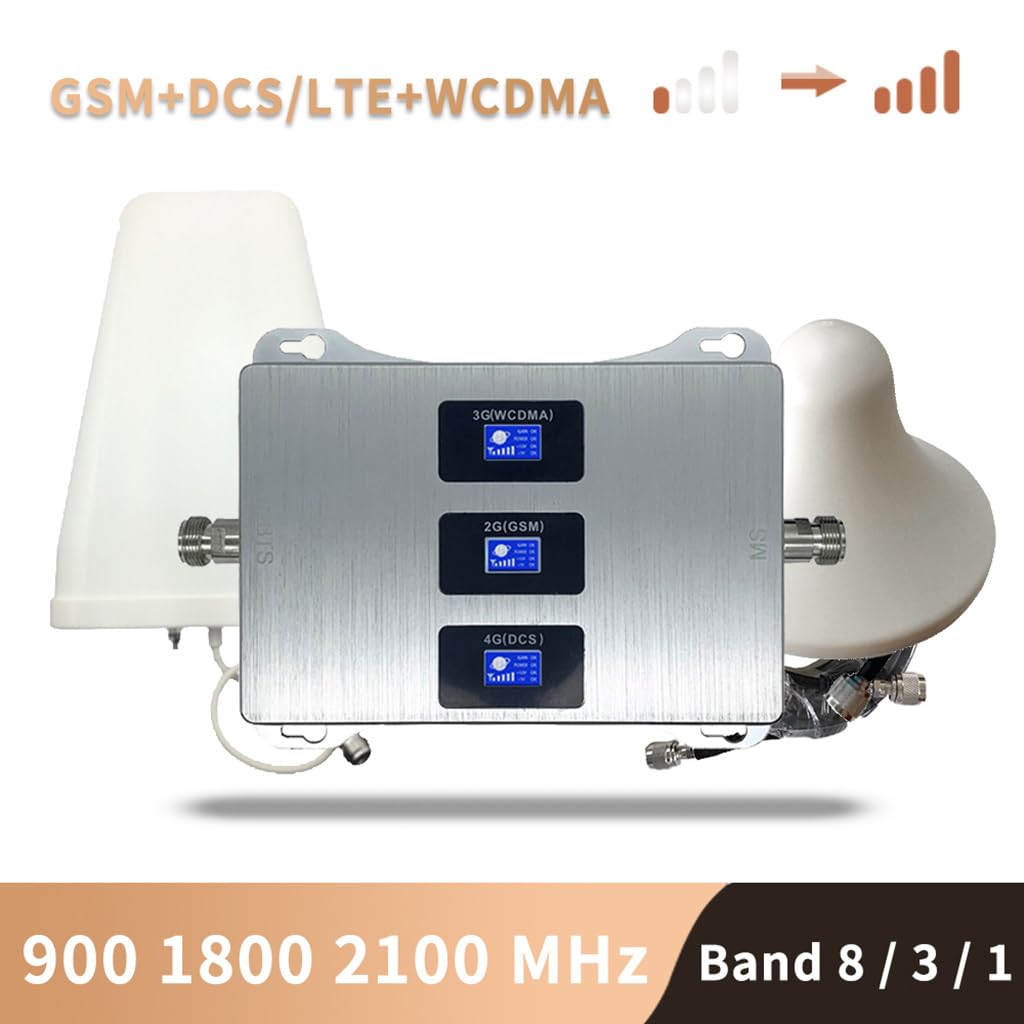

JMT 4G Tri-Band Cellular Signal Booster 2G 3G 4G Repeater B1 B3 B5 Mobile Phone Amplifier 900 1800 2100mhz Precautions 1, Outdoor antenna installation location must be able to make a clear call (generally 3-4 more than the best grid) 2.Outdoor antenna and the host should be straight line distance of 7 meters, so as to avoid self-excitation. 3. The indoor antenna should be installed at a height of more than two meters on the indoor wall or upside down on the ceiling, and the outdoor antenna must be higher than the indoor antenna. 4. All connectors must be tightened and wrapped with tape to avoid water oxidation, resulting in reduced indoor signal coverage. Product detail: Frequency Band:900/1800/2100. Uplink: 890-915mhz, 1700-1779mhz, 1918-2000mhz. Downlink: 935-960mhz, 1796-1829mhz, 2096-2185mhz. Gain: Uplink 35 ± 3dB / Downlink 70 ± 3dB. Output Power: Uplink 17 ± 2dBm / Downlink 20 ± 2dBm. ALC Range: ≥15 IM3: ≤-36dBc VSWR: 2:1 Delay: ≤0.5us Impedance: 50 Ω Port: SMA.F Supply: 12V/2A Size HxWxD: 16.3*10.5*2cm Weight: 0.6KG Coverage: 0-2000 square meters Material: Aluminum alloy Product Feature: It is mainly solved in urban villages, basements, elevators, garages, villas, offices, warehouses and some other blind areas where signals cannot reach. Strong penetration, wide coverage, home signal instantly full grid. High shielding, low radiation, can be used safely and securely.
Signal Booster Usage It is mainly solved in urban villages, basements, elevators, garages, villas, offices, warehouses and some other blind areas where signals cannot reach.
Frequency Band(900/1800/2100) Uplink 890-915mhz, 1700-1779mhz, 1918-2000mhz. Downlink 935-960mhz, 1796-1829mhz, 2096-2185mhz.
Gain Uplink 35 ± 3dBb / Downlink 70 ± 3dB. Output Power Uplink 17 ± 2dBbm / Downlink 20 ± 2dBm.
ALC Range ≥15. IM3 ≤-36dBc. VSWR 21. Delay ≤0.5us. Impedance 50Ω. Port SMA,F. Supply 12V/2A. Coverage 0-2000 square meters.
Strong penetration, wide coverage, home signal instantly full grid.
High shielding, low radiation, can be used safely and securely.
Warm Tips The indoor antenna should be installed at a height of more than two meters on the indoor wall or upside down on the ceiling, and the outdoor antenna must be higher than the indoor antenna.
