3 Channel Injection Pump Laboratory Micro injection Pump Dispensing Apparatus Syringe BoosterSpecification: Clampable syringe: 1ml ~ 50ml（Max）*3 (diameter <38mm) Speed range: Continuously adjustable 0.1mm/h - 5940mm/h Time setting: 1 second to 17 hours; Working mode: manual control, timed work, communication control Equipment working power: 12V2A Adapter power supply: 100 ~ 240V / 50Hz Motor Length: 62mm Slider stroke: 140mm Single circle lead: 1mm Max pushing force：About 50N Size: 290mm*130mm*130mm Weight: 1.5kgNote: 1. Because of the different types of syringes installed, the design only takes into account the displacement and speed settings. In use, you need to use a ruler to measure the distance of the syringe, then calculate the speed of propulsion and get the corresponding velocity. 2. About the position of the motor. According to the requirements of some users before, the shopkeeper designed the motor at the other end of the injector. 3. Many customers have asked about the thrust of the problem, where the treasurer tested with a soil approach, you can pull 5 kilograms of weight, so you can thrust at about 50N. Package included: 1 x Injection pump 1 x Controller 1 x Adapter
In addition to the MM unit, the controller also contains the sizes of 1, 2, 5, 10, 20, 30, 50 ml syringes, and automatically switches to ML ml after selection
8mm diameter stainless steel round guide rail is adopted,Extended bearing with flangeThe screw rod adopts T8 lead, 1mm screw, copper screw nut
Clamping adopts pressing block, M4 hand nut fastening; The motor is the 42 step motor,Large torque motor is adoptedThe single lap is set to 400 steps

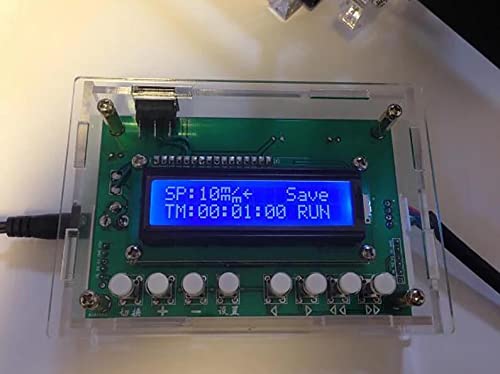

Controller, 1602 liquid crystal display, 4 buttons can set speed, work time, work mode, and the other 4 buttons for controlling the machines, respectively, fixed speed movement and high-speed movement. The set parameter saves the power storage. Quick press add button.
BoardReserved TTL level RS-232 interfaceThe control button also has an external interface that can be used for interfacingSwitch off external switch and foot switchEtc.. You can connect external controllers such as computers and PLC.
