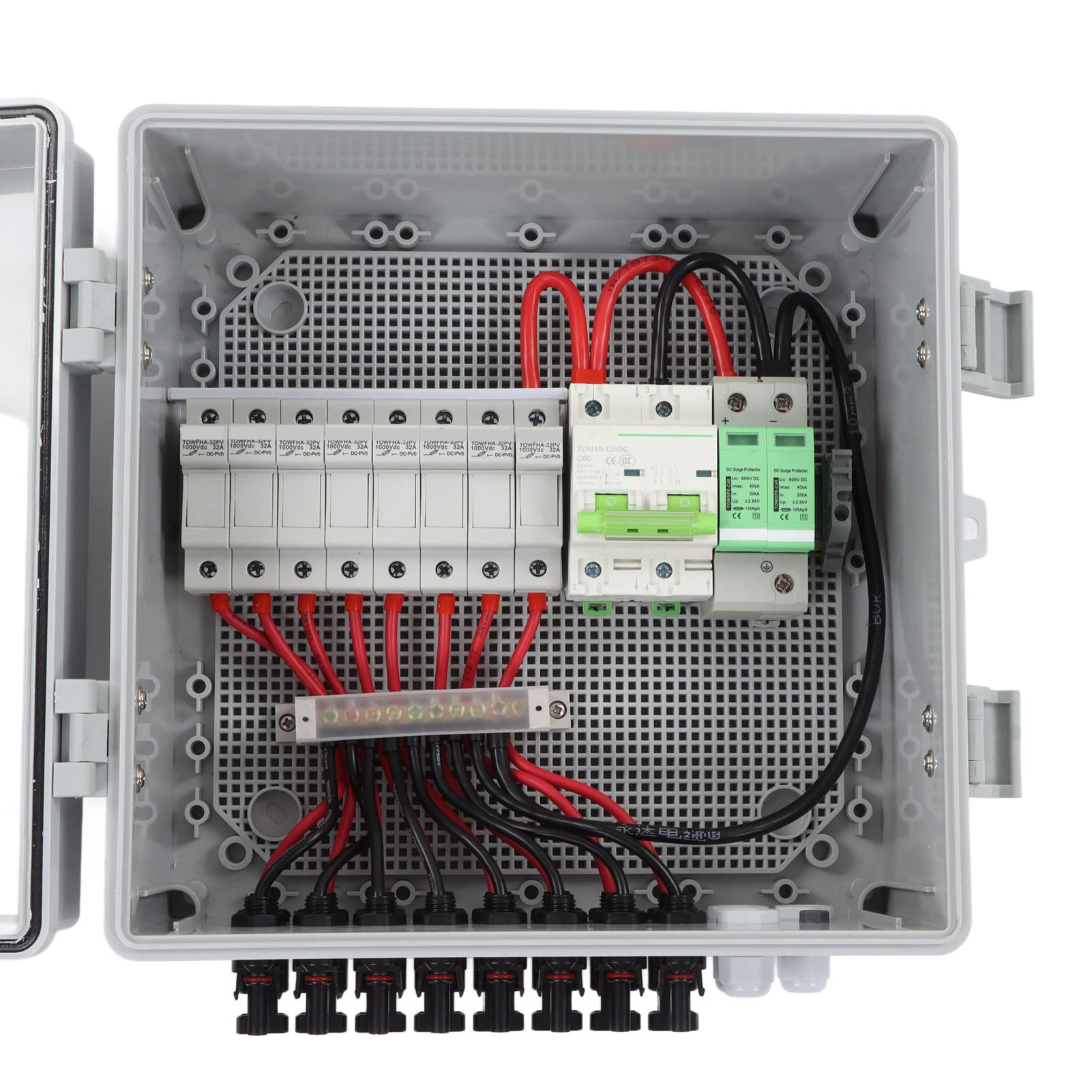

Feature: 1. CURRENT VOLTAGE: 8 string PV combiner box, the maximum current of a single PV input array is 10A, the rated continuous load of each string is 250VDC.2. 10A: Single PV input array mounted high voltage, 10A rated current, with overload and overcharge protection functions.3. DC BREAKER: 80A solar DC circuit breaker controls the output, with short circuit protection, making the solar system more safe and reliable. Specification: Item Type: PV Combiner Box Connected PV Array: Maximum 8 Single PV Array Input Current: Maximum 10A PV Array Total Input Current: 80A PV Array Total Maximum Input Voltage: 1000V Protection Grade: IP65 Working Ambient Temperature: -30-70℃ Relative Humidity: 0-95% Cooling Mode: Cooling Arrester Protection: Yes How to Use: Takeouttheproductandoperateitaccordingtotheusermanual. Package List: 1 x Electric Box 1 x Password Lock 4 x Fixing Pieces 14 x Screws 4 x Gaskets 4 x Screw Sleeves 1 x Wrench 1 x User Manual Note: No matter the specification of the solar panel, no matter the connection mode is series or parallel, as as the current and voltage of a single PV do not exceed 10A 250VDC, the combiner box can be connected.
【PROFESSIONAL PV COMBINER BOX】It can organize the connection and convergence of PV modules, to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails, make the photovoltaic system at its best and increase output power.
【SAFE & RELIABLE】This 8 string solar combiner box is equipped with 10A rated , arrester, and a 80A circuit breaker. It has short circuit/ /over voltage/over current protection/grounding to avoid damage to photovoltaic panels and inverters when fault occurs, and backflow prevention diode is used to provide reverse protection.
【EASY INSTALLATION】This DC breaker box is plug and play, the pre connected cables make connecting your solar panel system easier and faster, saving you a lot of time. This combiner box with mounting clips, output cable connector and label, suit for any regular . The wiring of the combiner box adopts terminal blocks and wiring blocks, which are safe, clear and concise.
【WIDE RANGE OF APPLICATIONS】IP65 waterproof PV combiner box for solar is insulated, waterproof, dustproof, UV proof, which is a perfect device for outdoor installation and use. It can be widely used for photovoltaic grid connected and off grid power generation systems, solar panel systems, photovoltaic arrays, RV solar energy, and household solar panel systems.
【QUALITY ASSURANCE】We are very confident in the quality of this circuit product, and provide 12 months warranty or refund for it. Please feel to us if you have any questions about your purchase. We will solve your problem within 24 hours.
